Created By  dmarkovtsev Friday, July 21, 2017

Rapise is a test automation platform for desktop, web and mobile applications. It is designed for building automated and manual end-to-end UI tests and fits any TestOps infrastructure.

Elasticsearch is a distributed, RESTful search and analytics engine capable of solving a growing number of use cases. As the heart of the Elastic Stack, it centrally stores your data so you can discover the expected and uncover the unexpected.

From this article you will learn how to integrate Rapise and Elasticsearch together.

Why Integrate?

Elasticsearch can be a great tool for log analysis and monitoring. It may help easily answer important questions arising in test automation projects:

  1. How did a particular test behaved over time? Does it produce stable results or is it flaky?
  2. How tests executed on a production system feel at the moment?
  3. Are there any problems caught by synthetic monitoring?
  4. Are there specific words or patterns in logs?



Integration

Elasticsearch provides REST API for other applications to send data. Rapise has a built-in REST client, so we can use it to send log messages and results of test execution to Elasticsearch.

We've put integration code into this GitHub repository. So you can easily clone it and try for yourself.



Elastic Indexes

Create indexes for test execution status and logs in Elasticsearch. Easiest way is to do this via Kibana.

Index for test execution status

PUT rapise
{
  "mappings": {
    "regression": {
      "properties": {
        "timestamp": {
          "type":   "date",
          "format": "yyyy-MM-dd'T'HH:mm:ss.SSS"
        },
        "testname": {
          "type": "string"
        },
        "status": {
          "type": "integer"
        }
      }
    }
  }
}



Index for logs

PUT rapiselog
{
  "mappings": {
    "regression": {
      "properties": {
        "timestamp": {
          "type":   "date",
          "format": "yyyy-MM-dd'T'HH:mm:ss.SSS"
        },
        "testname": {
          "type": "string"
        },
        "message": {
          "type": "string"
        }
      }
    }
  }
}



REST Client

In Rapise create REST client and implement endpoints for sending status and log messages to corresponding indexes in Elasticsearch.



Source Code

Write code for sending the data to Elasticsearch.

Test execution status

function GetFormattedDate()
{
    var d = new Date();
    d = new Date(d.getTime() + d.getTimezoneOffset() * 60000); // elastic expects UTC
    var dateString =  d.getFullYear()
        + "-" +  ("0"+(d.getMonth()+1)).slice(-2)
        + "-" + ("0"+d.getDate()).slice(-2)
        + "T" + ("0" + d.getHours()).slice(-2)
        + ":" + ("0" + d.getMinutes()).slice(-2)
        + ":" + ("0" + d.getSeconds()).slice(-2)
        + "." + ("0" + d.getMilliseconds()).slice(-3);
    return dateString;
}

function SendTestStatusToElastic()
{
    Global.DoLoadObjects('%WORKDIR%/../Elastic/Elastic.objects.js');
    g_restRoot = Global.GetCurrentDir() + "\\..\\Elastic";

    // Calculate timestamp
    var dateString = GetFormattedDate();

    // Test name
    var testName = g_scriptFileName.split('\\').slice(-1);

    // Test status
    var status = Tester.GetTestStatus();

    // Prepare log record
    var record =
    {
      "timestamp": dateString,
      "testname": testName,
      "status": status
    }

    // Post to ElasticSearch
    var Elastic_SEED=SeS('Elastic_SEED');
    Elastic_SEED.SetRequestBodyObject(record);
    Elastic_SEED._DoExecute(record);
}



Log message

function ElasticLog(msg)
{
    function _initializeLogging()
    {
        for (var i = 0; i < 5; i++)
        {
            // Set all verbose levels
            if (i <= g_verboseLevel)
                eval("l" + i + "=true;");
            else
                eval("l" + i + "=false;");
        }
    }

    var verboseLevel = g_verboseLevel;

    // Suppress logging to avoid recursion
    g_verboseLevel = 0;
    _initializeLogging();

    Global.DoLoadObjects('%WORKDIR%/../Elastic/Elastic.objects.js');
    g_restRoot = Global.GetCurrentDir() + "\\..\\Elastic";

    // Calculate timestamp
    var dateString = GetFormattedDate();

    // Test name
    var testName = g_scriptFileName.split('\\').slice(-1);


    // Prepare log record
    var record =
    {
      "timestamp": dateString,
      "testname": testName,
      "message": msg
    }

    // Post to ElasticSearch
    var Elastic_LOG=SeS('Elastic_LOG');
    Elastic_LOG.SetRequestBodyObject(record);
    Elastic_LOG._DoExecute(record);

    // Resume logging
    g_verboseLevel = verboseLevel;
    _initializeLogging();
}



Usage

In order to use the integration in your test follow these simple steps.

  1. Clone this GitHub repository.
  2. Place your test and Elastic test from the repository into the same parent folder.
  3. In your test *.user.js file include the integration code.


    eval(File.IncludeOnce('%WORKDIR%/../Elastic/ElasticIntegration.js'));



  4. In your test main file override Log function and call status sending function at the end.


    function Test()
    {
        // Override Log function to redirect logging to Elasticsearch
        Log = ElasticLog;

        // Your test code
        Tester.Assert("2 + 2 = 4", (2 + 2) == 4);

        // Send test execution status to Elasticsearch
        SendTestStatusToElastic();
    }



  5. The list of libraries in your test must include Web Service.


    g_load_libraries=["Web Service"];



Analysis

After executing tests you can analyze the results in Kibana.

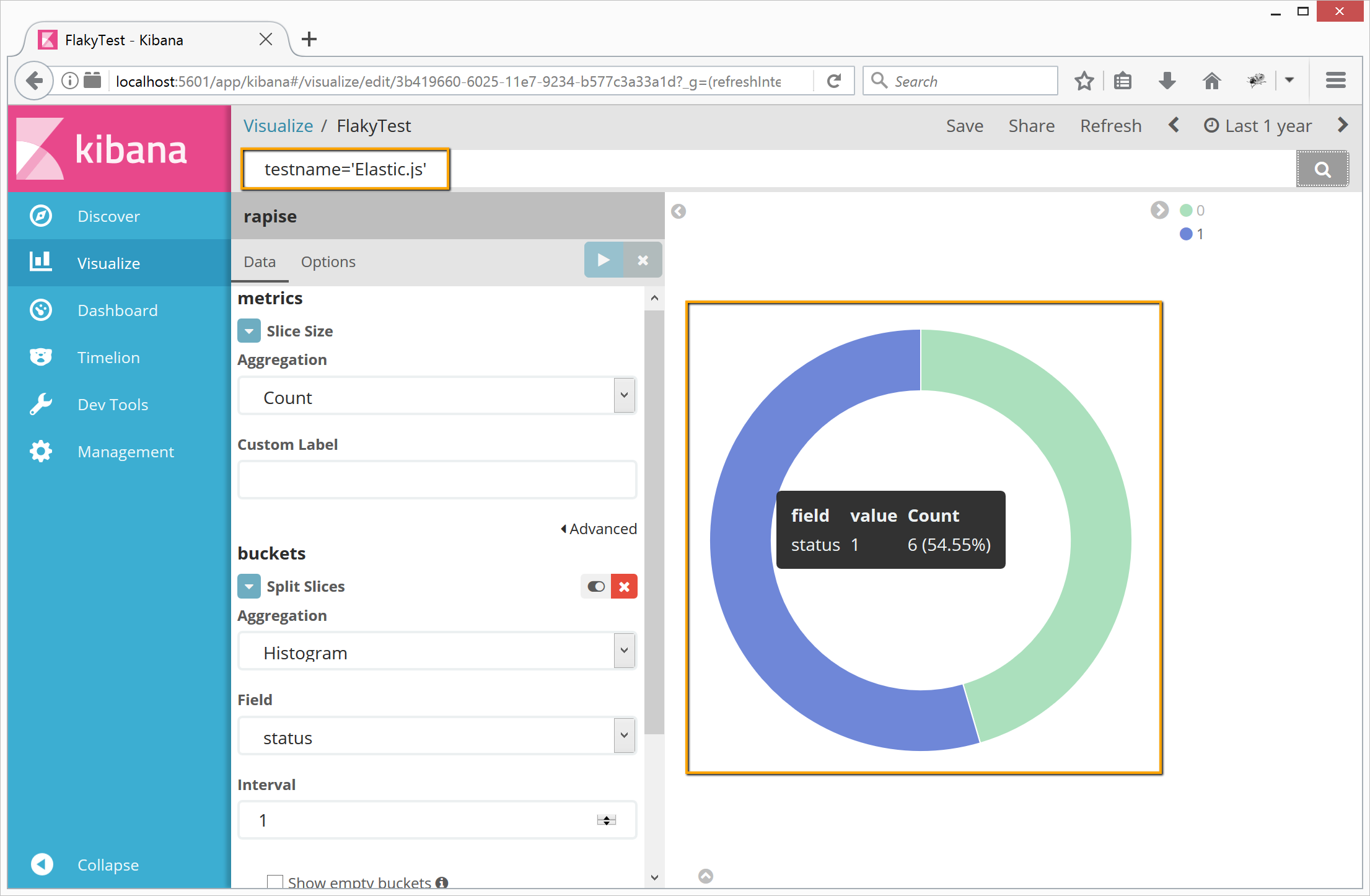

Flaky Test

By filtering on a test name, getting results from status index and visualizing via pie chart you can get this nice looking donut.

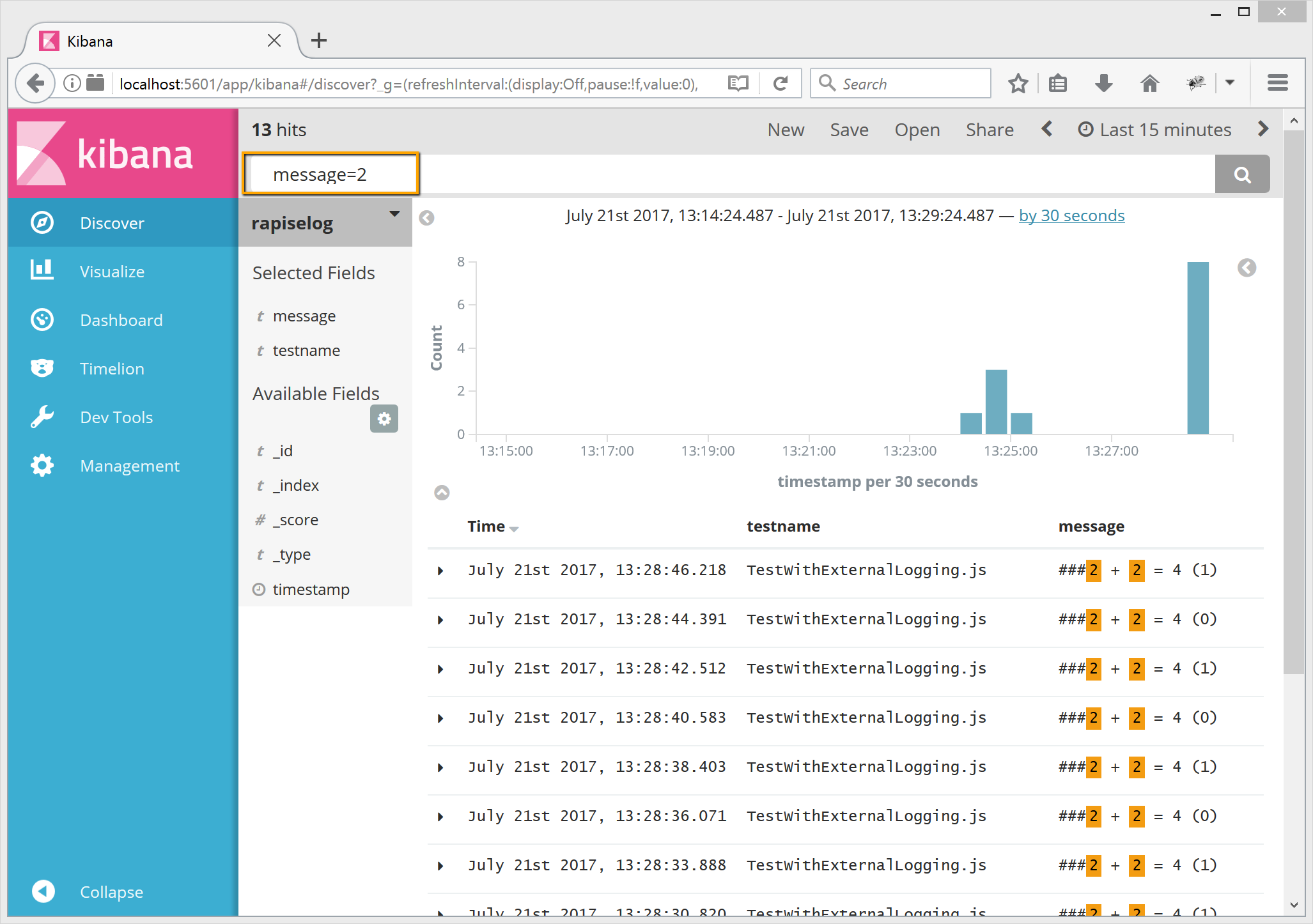

Logs

By filtering on a specific substring get all relevant log messages instantly.



Conclusion

Rapise and Elasticsearch can be good friends and form a very powerful tandem in any test automation process. Both tools can be easily integrated so you can spend most of your time testing and analyzing results.
