We had a potential customer that was looking to generate simplified test result reports from SpiraTeam that had more details for each of the executed test steps, with full size screenshots displayed, rather than the small table cells that are in the small reports. This article contains an example of such a report.

Sample From the Customer

The customer was looking for a report that looks something like:

We were able to use the SpiraTeam Custom Reporting to create a modified Standard Report (based on the Test Run Detailed Report) to create a report that uses the standard XML data coming from SpiraTeam, with a custom XSLT template to change how it was displayed.

Customizing the SpiraTeam Report

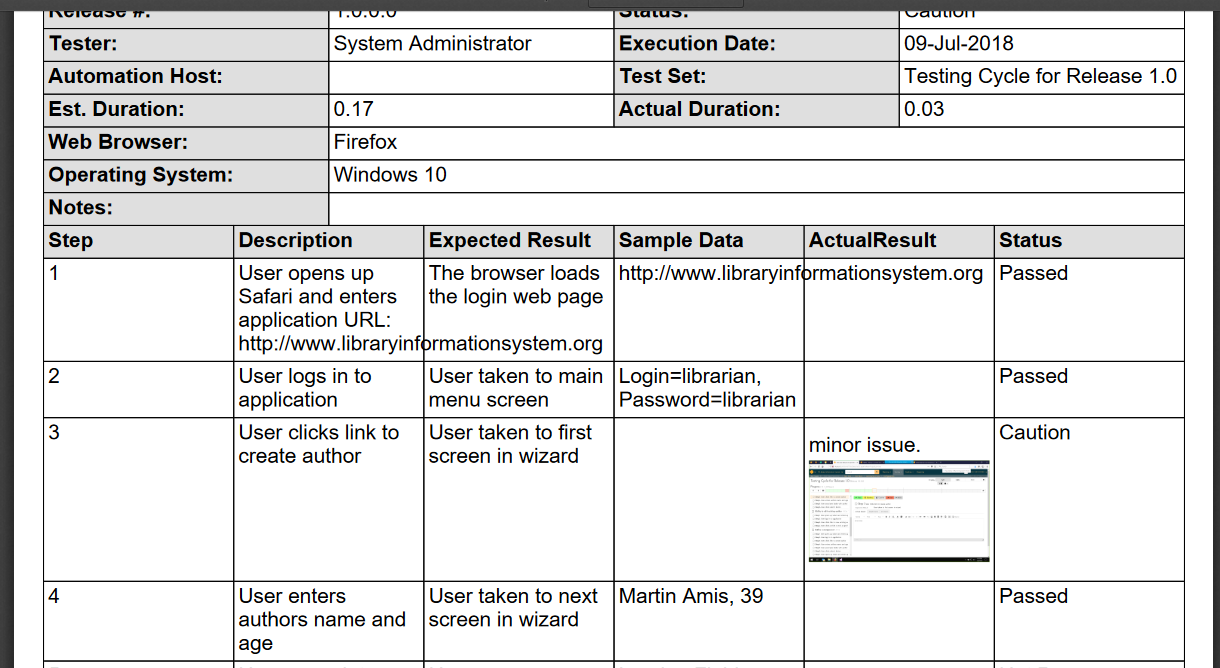

If you run the standard Test Run Detailed Report in PDF format, you would see something like:

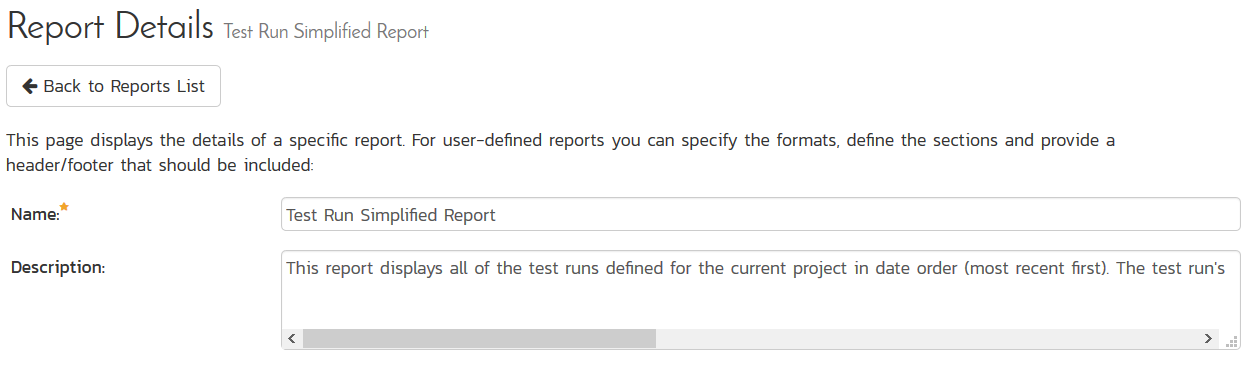

So what we did is clone the report, and create a new one called "Test Run Simplified Report":

Then we clicked on the Customize button for the Test Run Details standard section:

We then changed the Template to the following:

<?xml version="1.0" encoding="utf-8"?>
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:msxsl="urn:schemas-microsoft-com:xslt" exclude-result-prefixes="msxsl">
  <xsl:template match="/TestRunData">
    <xsl:for-each select="TestRun/TestRunSteps/TestRunStep">
      <table class="HiddenTable">
        <tr>
          <th>Test Run #:</th>
          <td>
            TR<xsl:value-of select="../../TestRunId"/>
          </td>
		  <th>Test Case #:</th>
          <td>
            TC<xsl:value-of select="../../TestCaseId"/>
          </td>
        </tr>
        <tr>
          <th>Release #:</th>
          <td>
            <xsl:value-of select="../../ReleaseVersionNumber"/>
          </td>
          <th>Status:</th>
          <td>
            <xsl:value-of select="ExecutionStatusName"/>
          </td>
        </tr>
        <tr>
          <th>Tester:</th>
          <td>
            <xsl:value-of select="../../TesterName"/>
          </td>
          <th>Execution Date:</th>
          <td class="Date">
            <xsl:call-template name="format-date">
              <xsl:with-param name="datetime" select="../../StartDate" />
            </xsl:call-template>
          </td>
        </tr>
        <tr>
          <th>Test Set:</th>
          <td>
            <xsl:value-of select="../../TestSetName"/>
          </td>
          <th>Test Step #:</th>
          <td>
            <xsl:value-of select="Position"/>
          </td>
        </tr>
		<tr>
			<td colspan="4">
                <xsl:value-of select="Description" disable-output-escaping="yes"/>
				<br />
                <xsl:value-of select="ExpectedResult" disable-output-escaping="yes"/>
			</td>
		</tr>
		<tr>
			<th>Actual Result:</th>
			<td colspan="3">
				<xsl:value-of select="ActualResult" disable-output-escaping="yes"/>
			</td>
		</tr>
      </table>
	  <div>
		...
		<br />
	  </div>
    </xsl:for-each>
  </xsl:template>
  <xsl:template name="format-date">
    <xsl:param name="datetime"/>
    <xsl:variable name="date" select="substring-before($datetime, 'T')" />
    <xsl:variable name="year" select="substring-before($date, '-')" />
    <xsl:variable name="month" select="substring-before(substring-after($date, '-'), '-')" />
    <xsl:variable name="day" select="substring-after(substring-after($date, '-'), '-')" />
    <xsl:variable name="time" select="substring-before(substring-after($datetime, 'T'), '.')" />
    <xsl:variable name="monthname">
      <xsl:choose>
        <xsl:when test="$month='01'">
          <xsl:value-of select="'Jan'"/>
        </xsl:when>
        <xsl:when test="$month='02'">
          <xsl:value-of select="'Feb'"/>
        </xsl:when>
        <xsl:when test="$month='03'">
          <xsl:value-of select="'Mar'"/>
        </xsl:when>
        <xsl:when test="$month='04'">
          <xsl:value-of select="'Apr'"/>
        </xsl:when>
        <xsl:when test="$month='05'">
          <xsl:value-of select="'May'"/>
        </xsl:when>
        <xsl:when test="$month='06'">
          <xsl:value-of select="'Jun'"/>
        </xsl:when>
        <xsl:when test="$month='07'">
          <xsl:value-of select="'Jul'"/>
        </xsl:when>
        <xsl:when test="$month='08'">
          <xsl:value-of select="'Aug'"/>
        </xsl:when>
        <xsl:when test="$month='09'">
          <xsl:value-of select="'Sep'"/>
        </xsl:when>
        <xsl:when test="$month='10'">
          <xsl:value-of select="'Oct'"/>
        </xsl:when>
        <xsl:when test="$month='11'">
          <xsl:value-of select="'Nov'"/>
        </xsl:when>
        <xsl:when test="$month='12'">
          <xsl:value-of select="'Dec'"/>
        </xsl:when>
        <xsl:otherwise>
          <xsl:value-of select="''" />
        </xsl:otherwise>
      </xsl:choose>
    </xsl:variable>
    <xsl:value-of select="concat($day, '-' ,$monthname, '-', $year , ' ', $time)" />
  </xsl:template>
</xsl:stylesheet>

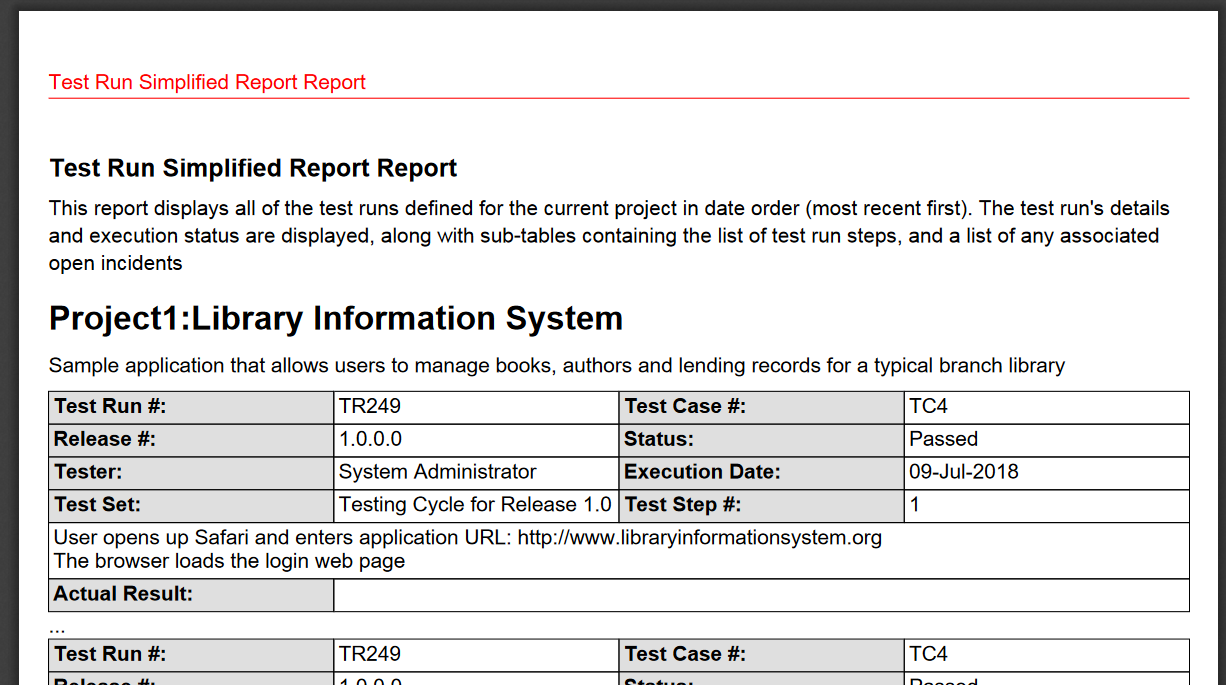

When you run this new version of the report, you get something that looks like:

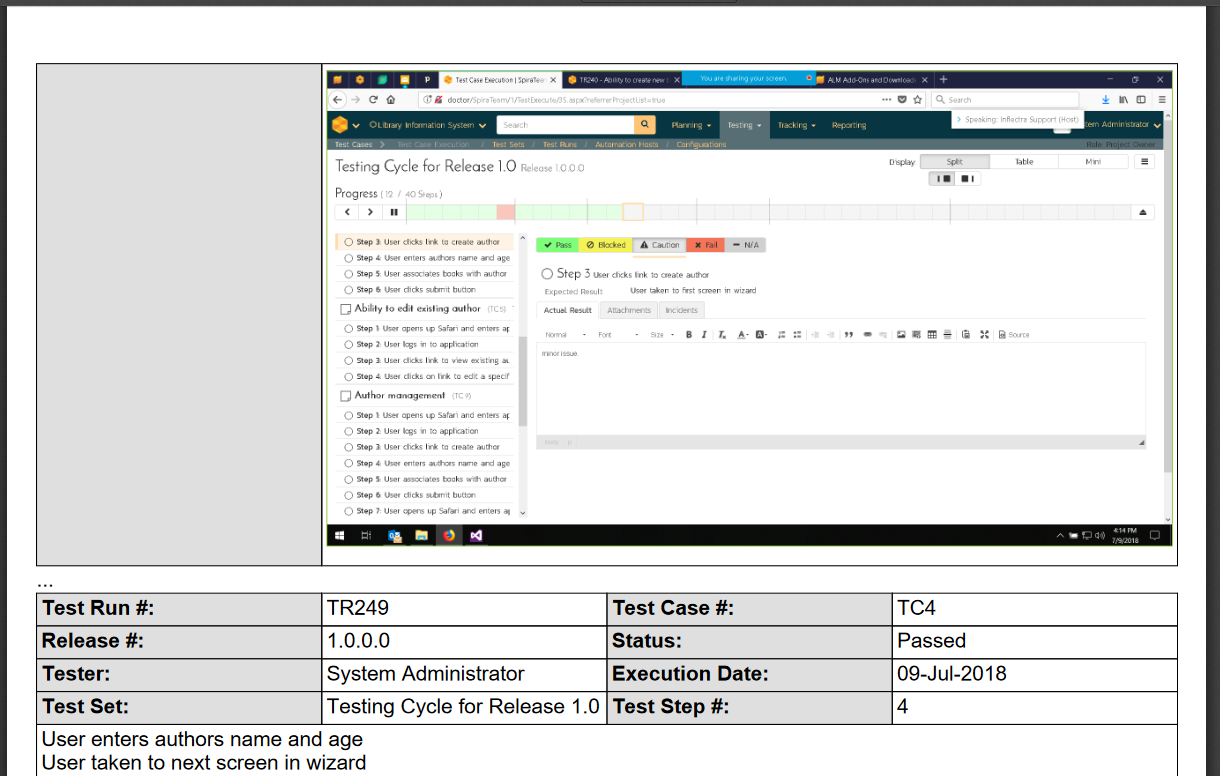

which has the nice effect of allowing much larger images than the standard report:
